Our portfolio

Custom setting design for a multitude of measurement and regulation applications, ranging from light residential/commercial to high pressure/capacity district and end-user scenarios.

CapabilitiesContact
Featured Project

Hunter Gas Main

ANSI 300 regulation skid designed to accommodate up to 500 MCFH built for a major utility system expansion in Central Ohio. The system integrates dual run pressure control with bypass and cellular alarm/reporting capabilities.

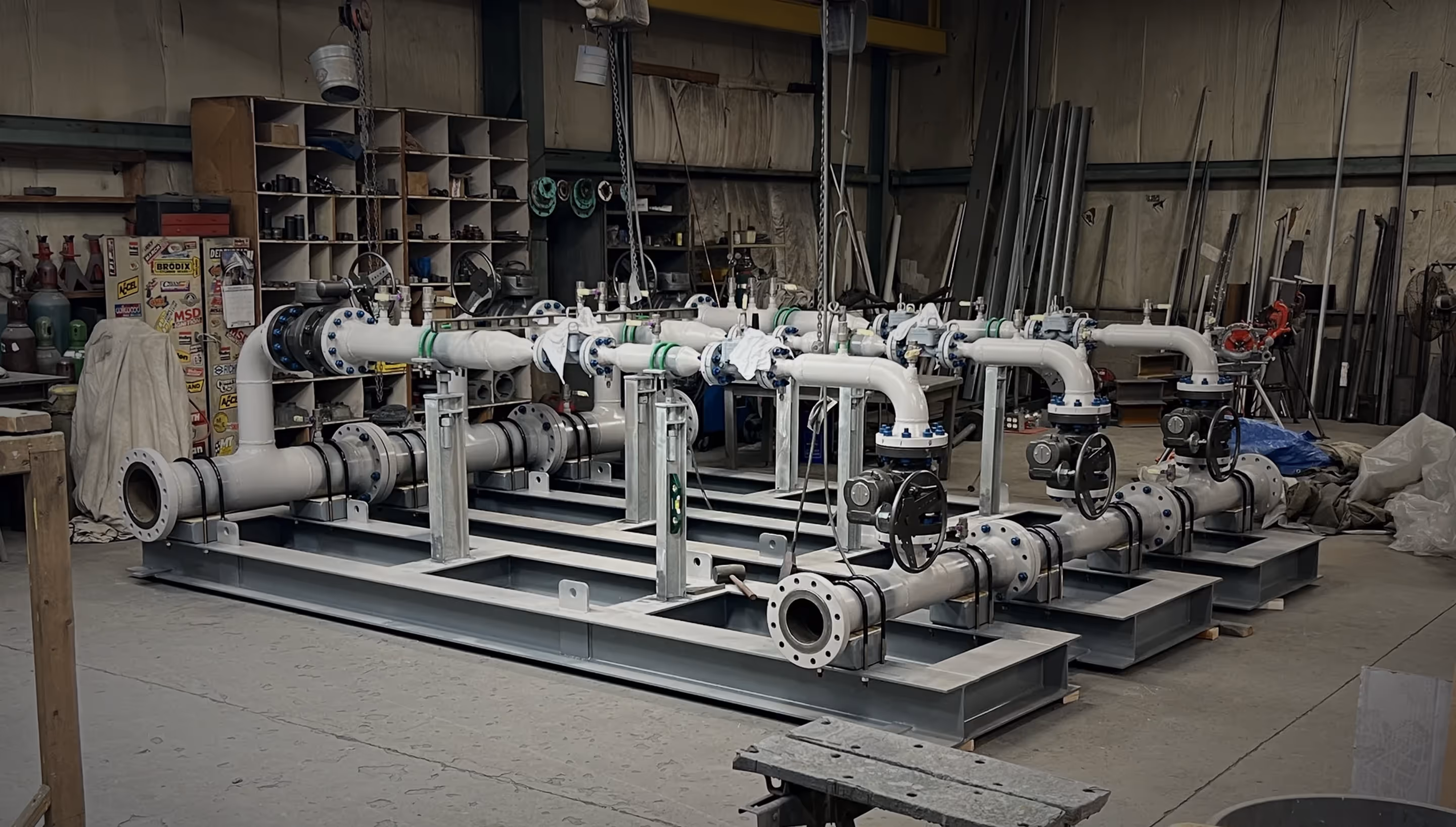

Hunter Station ANSI 300 regulation skid designed to accommodate up to 500 MCFH built for a major utility system expansion in Central Ohio.

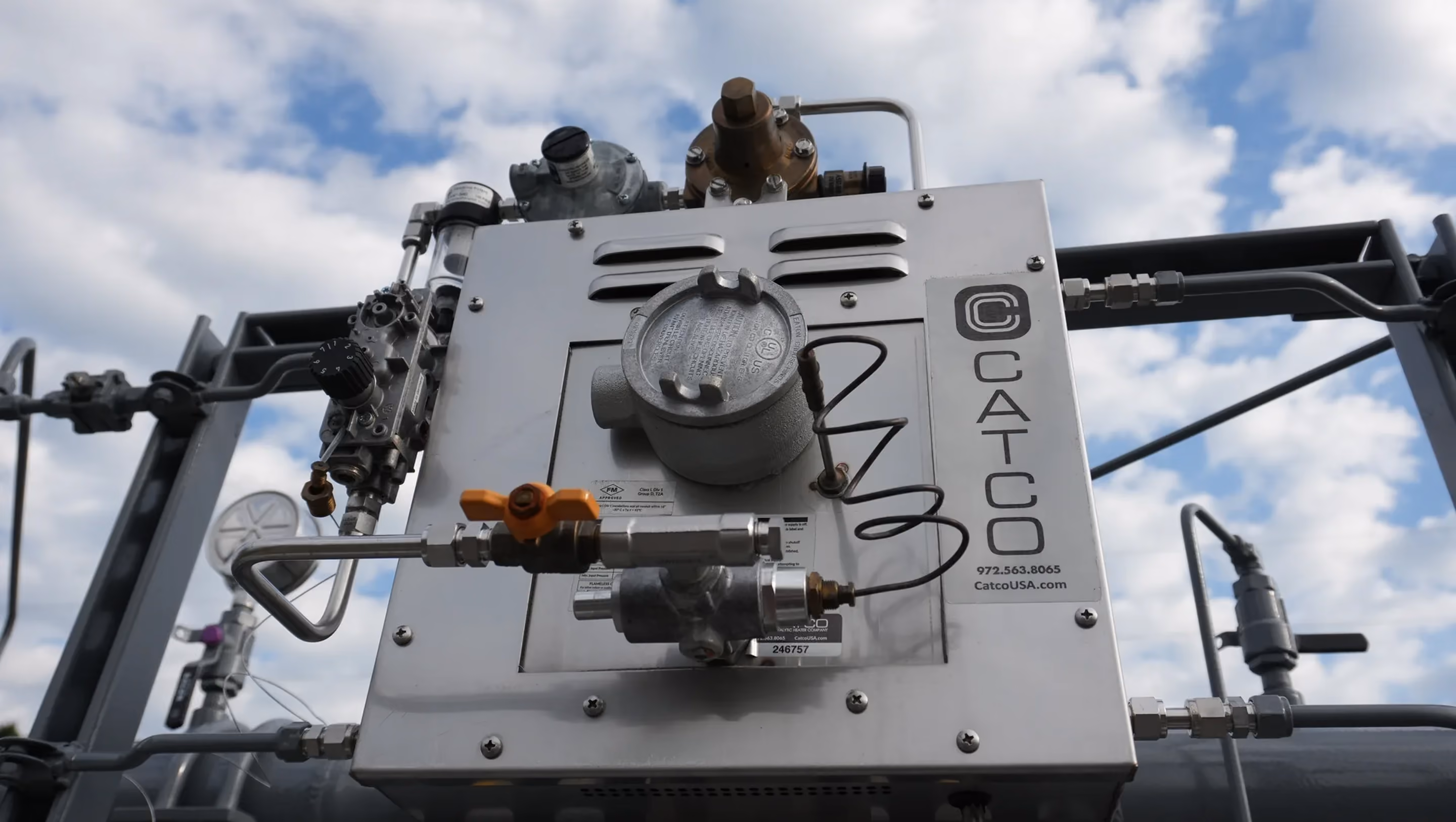

CATCO catalytic heater on a natural gas station skid, seen from below against a blue sky.
Honeywell ERX 350 pressure recorder mounted on station piping, showing a live pressure reading.
Honeywell MIWI communications enclosure with a solar panel, post-mounted at a fenced gas station.
Three Trerice pressure gauges on manifold piping at the Hunter station, with a green field behind.
Bolted flange connections on a natural gas manifold, mounted on steel supports inside a fenced station.
CATCO catalytic heater on a natural gas station skid, seen from below against a blue sky.

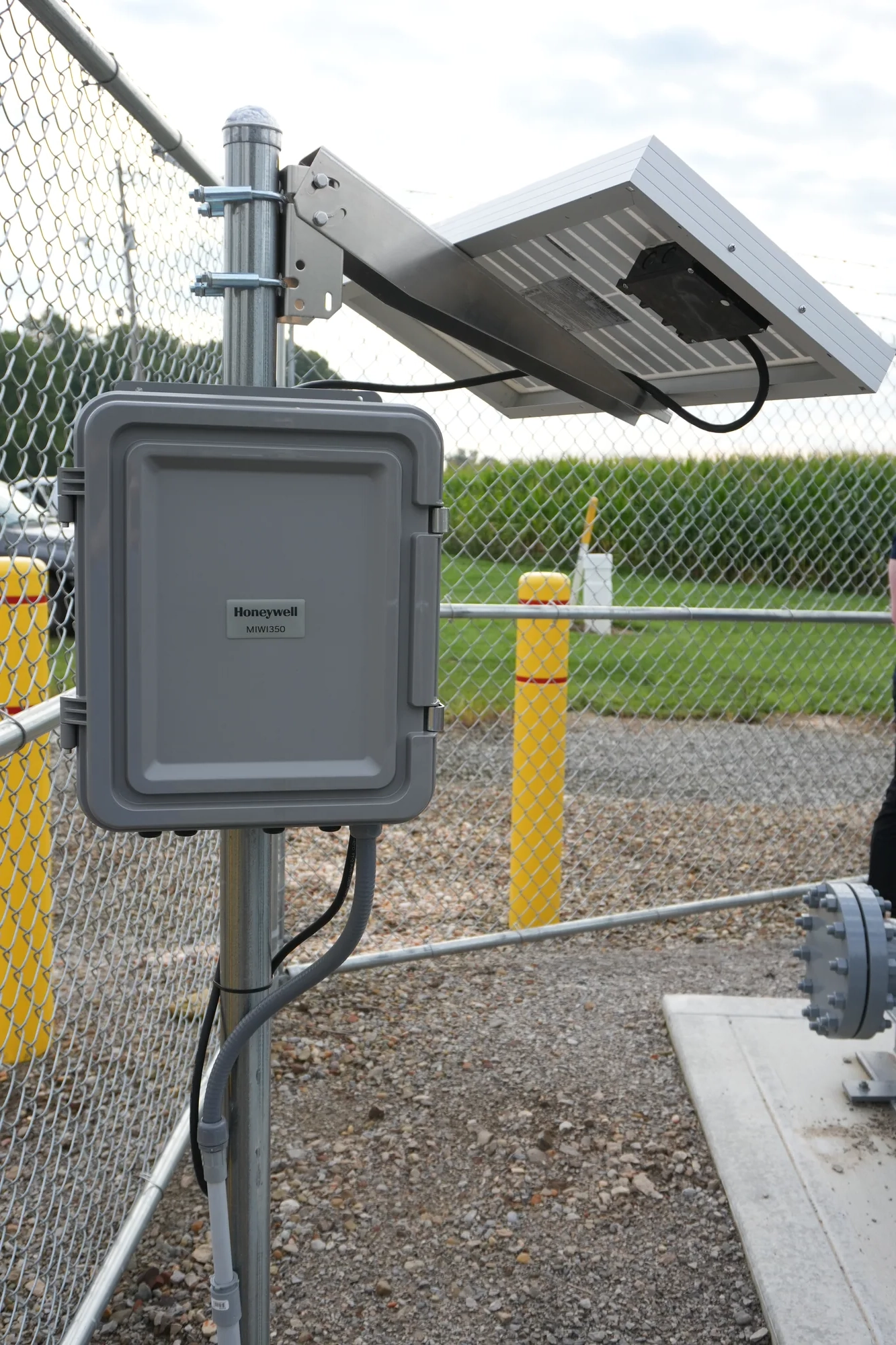

Honeywell MIWI350 telemetry enclosure and solar panel mounted on a fence post beside a cornfield.

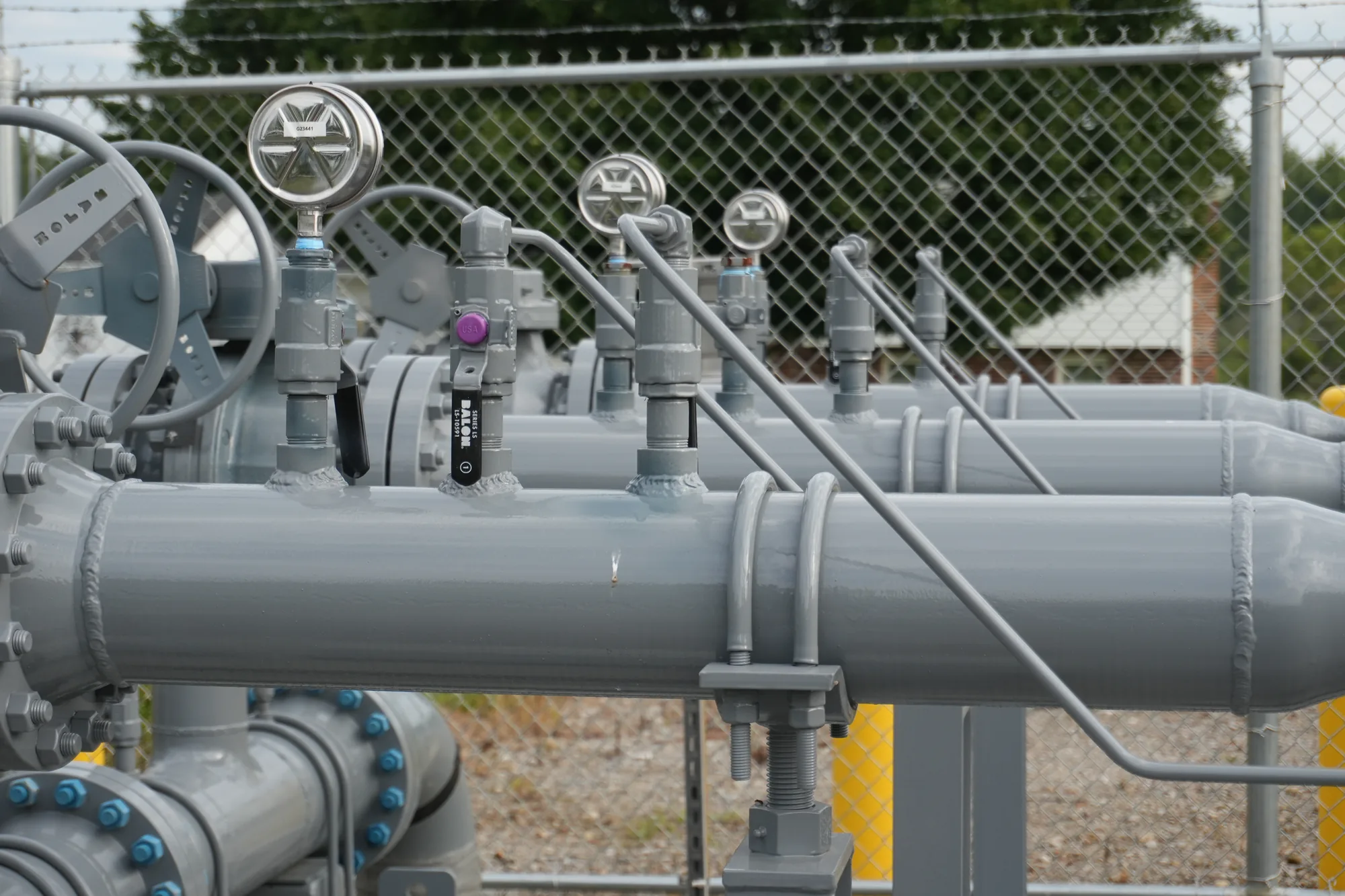

Row of pressure gauges and instrument taps welded along a natural gas manifold header at a fenced station.

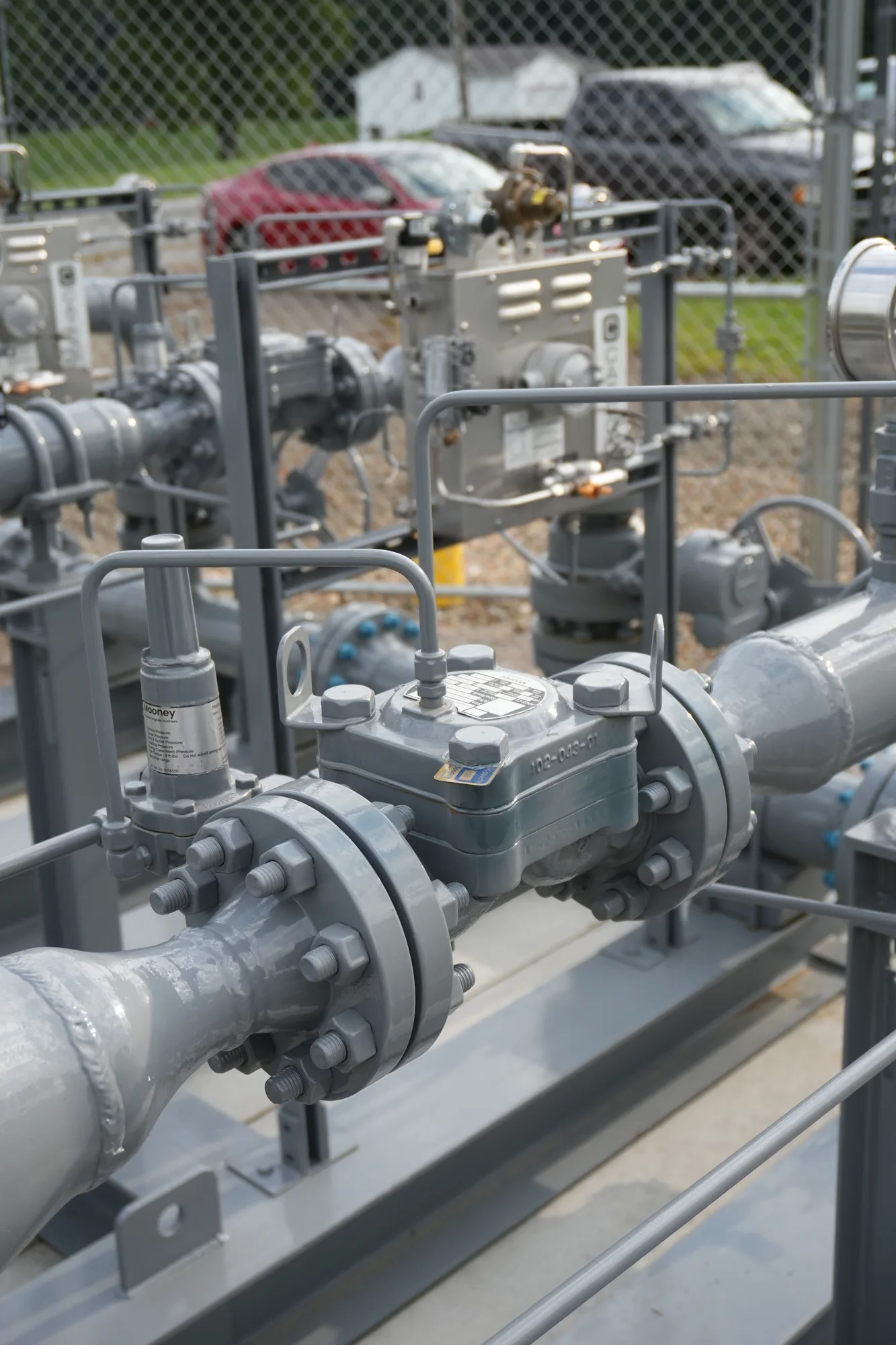

Mooney regulator on bolted flanged piping at a natural gas station, with catalytic heaters behind.

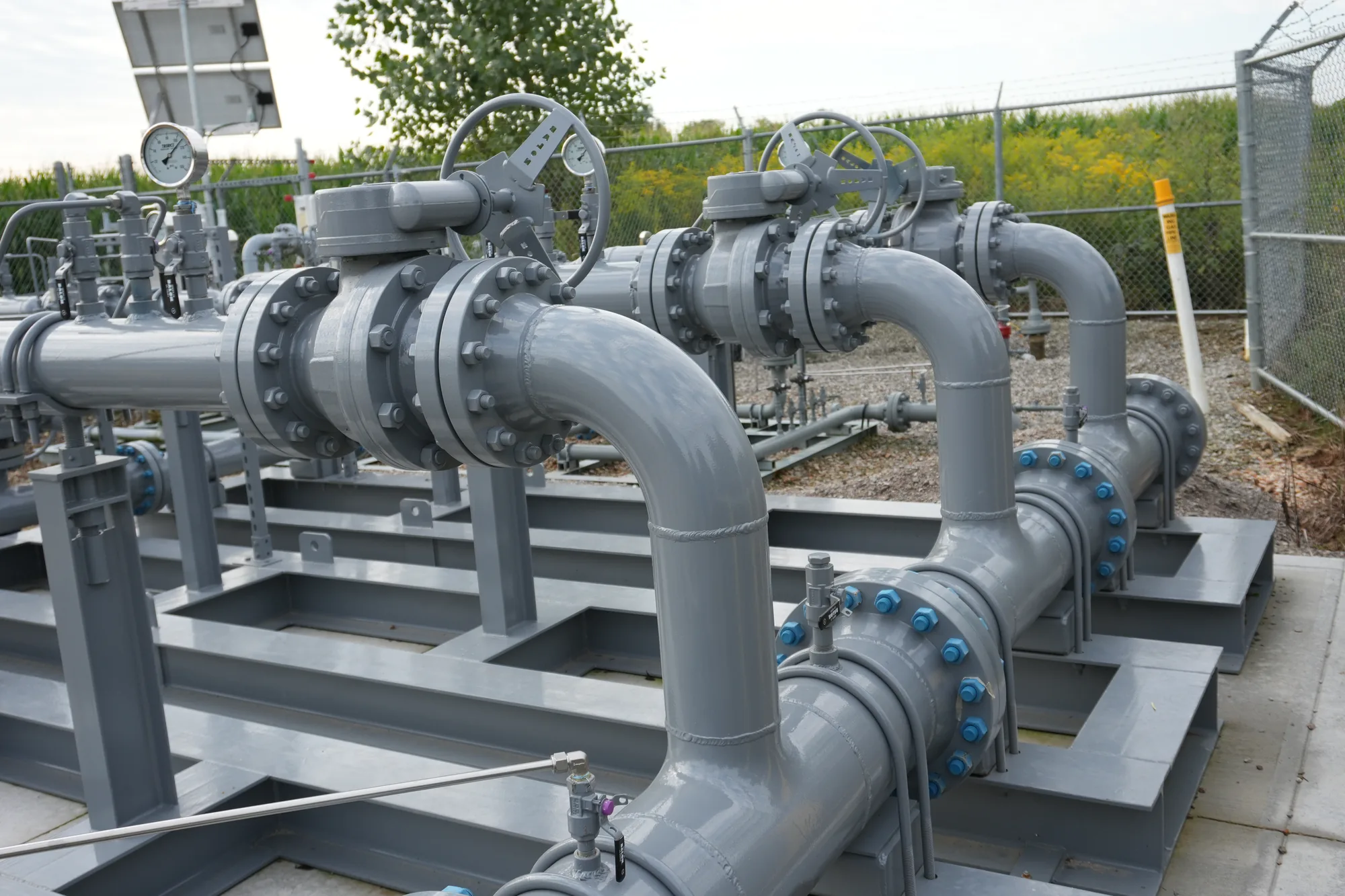

Natural gas regulation skid with twin handwheel valves, bolted flanges and solar-powered telemetry.
Trerice pressure gauge and Balon ball valve on painted piping at a fenced natural gas regulator station.
Hunter GAS MAIN

Project facts

Client

Midwest Utility Operator

location

Morrow County, Ohio

delivered

September 2025

pressure class

ANSI 300

flow capacity

500 MCFH

the build

Dual Run Pressure Control with Bypass.

Safety & Accountability

Hydrostatically tested at 1.5X MAOP and held under observation for 12 hours. Test results captured on regularly calibrated pressure recording equipment.

Documentation

Shipped with bound and digital project documentation covering every aspect of fabrication and testing, including Weld & Heat Lot Mapping, Material Test Reports, Radiographic Test Results, API 1104 Weld Certifications and Weld Procedure Documentation & Procedure Qualification Records, Operational & Pressure Test Reports, Instrumentation Calibration Records, and comprehensive Manufacturer Equipment Literature and Compliance documentation.

Projects

More installations

Each project represents capability and execution

High Capacity End-User | Measurement & Regulation Skid

M & R Skids designed to meet the demands of high pressure and capacity industrial process applications, ranging approximately from 35 - 125 MCFH, up to ANSI 600.
View project

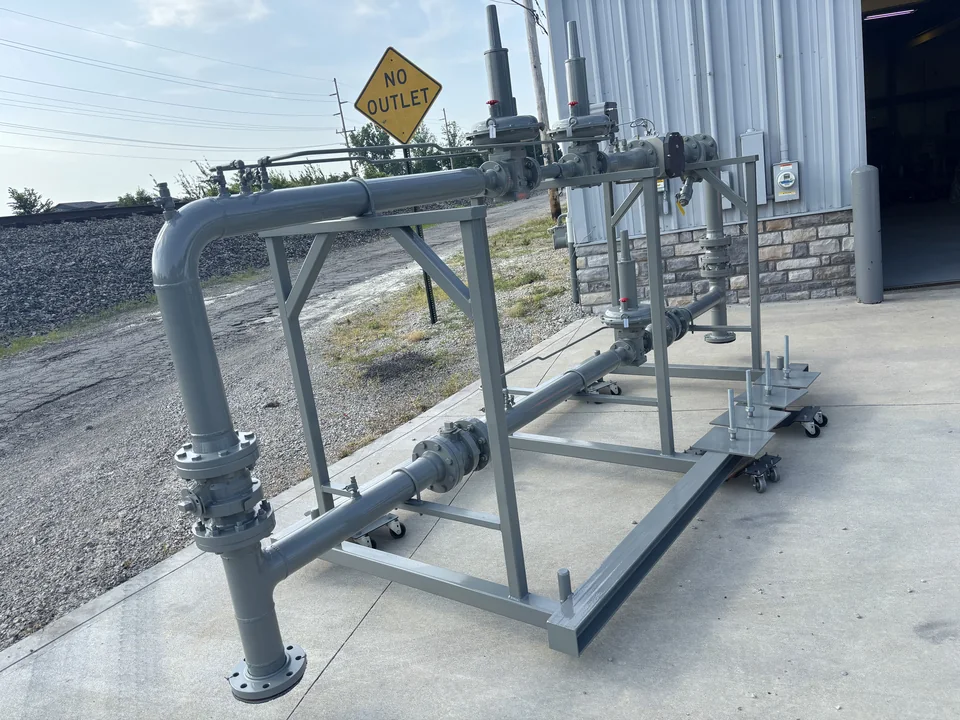

Skid-mounted high-capacity gas regulator run with vent stacks, staged outside the JNL Fab shop.

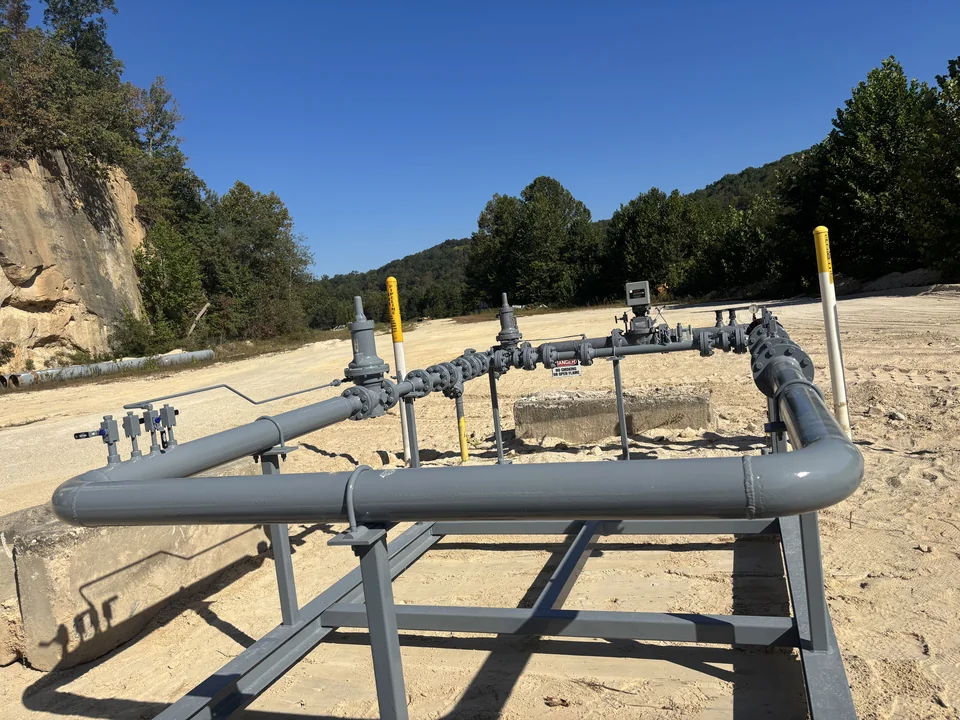

High-capacity natural gas regulator station with vent stacks on a steel skid, installed on a gravel pad.

District Regulation Station

Safely and consistently reduce pressure to accommodate large numbers of residential and/or commercial customers. Available in a multitude of meter/regulator (optional bypass regulator) and pipe size configurations up to approximately 100 MCFH.
View project

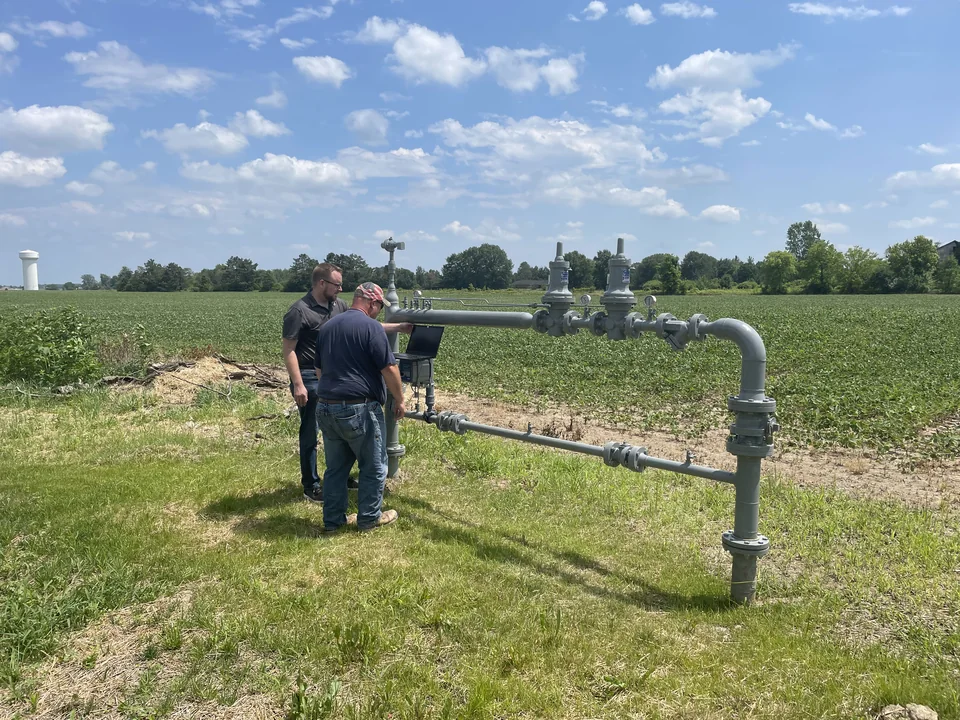

District regulator station installed at the edge of a farm field, with two technicians on site.

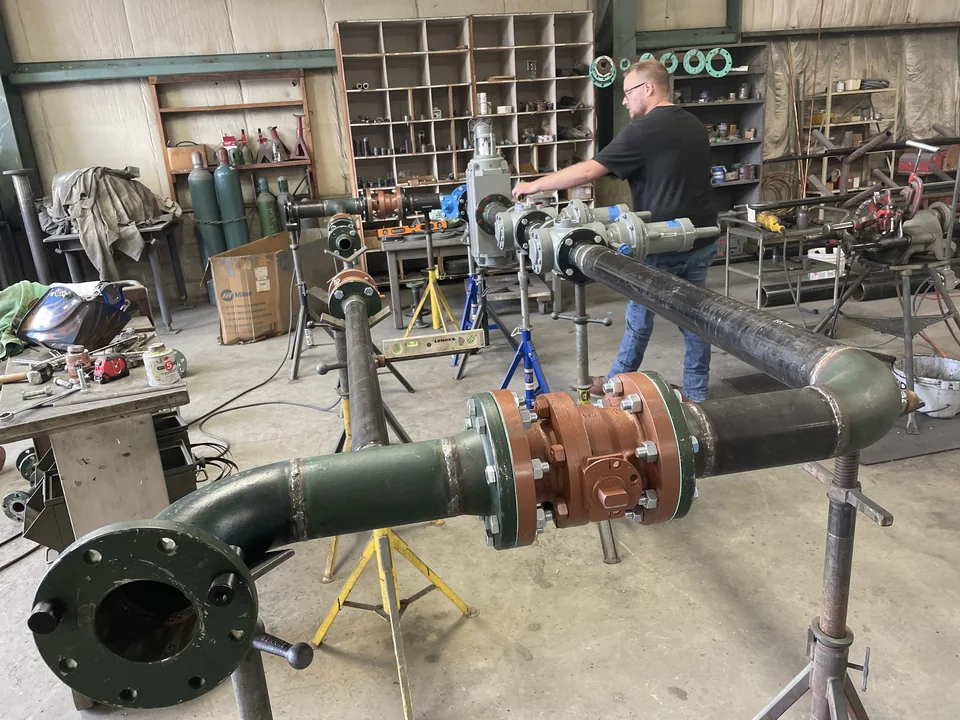

JNL Fab technician assembling a district regulator station on pipe stands in the fabrication shop.

Commercial

A variety of designs available for commercial customers - restaurants, gas stations, grocery and big box stores. Numerous meter/regulator and pipe size configurations to accommodate loads up to approximately 20 MCFH.
View project

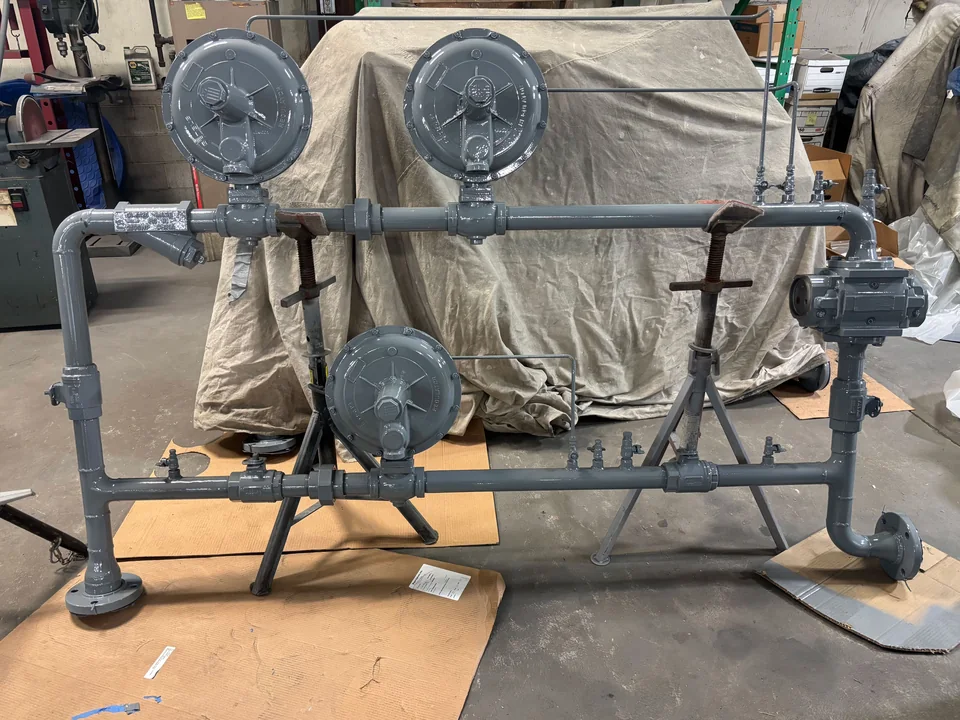

Commercial natural gas regulator run with three Fisher regulators on parallel headers, fabricated at JNL Fab.

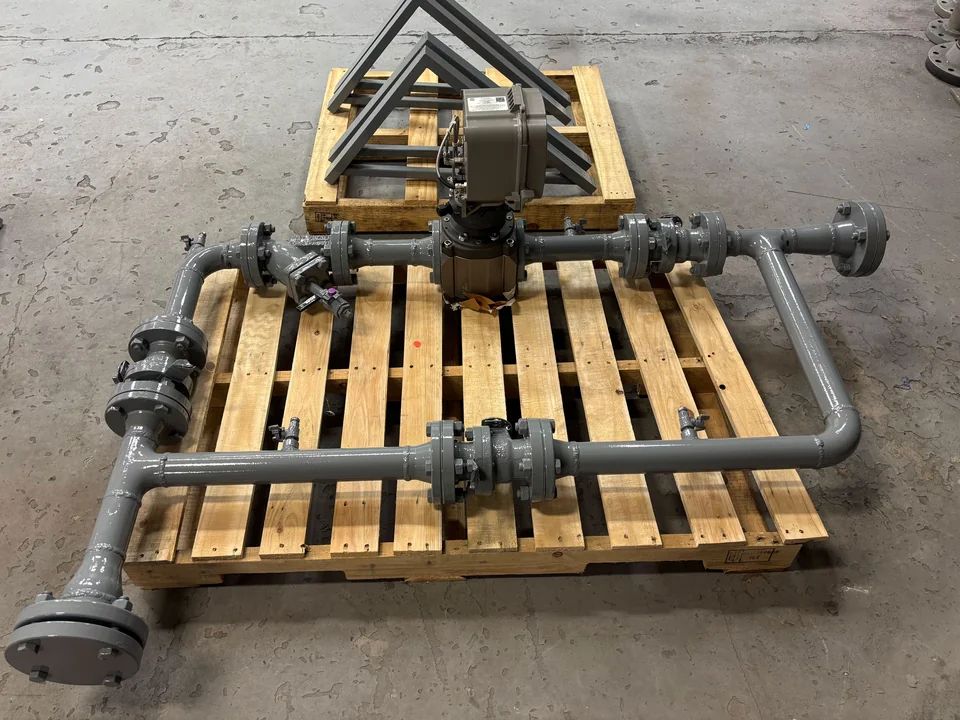

Commercial natural gas meter set with actuated valve and flanged connections, assembled and ready to ship.

Multi Tap Manifold | Light Commercial Setting

Multi tap manifold to accommodate any combination of residential/commercial class diaphragm and/or lower capacity rotary or ultrasonic meters. Residential style light commercial settings in a variety of center-to-center ferrule spacing to accommodate diaphragm, light rotary, and ultrasonic meters.
View project

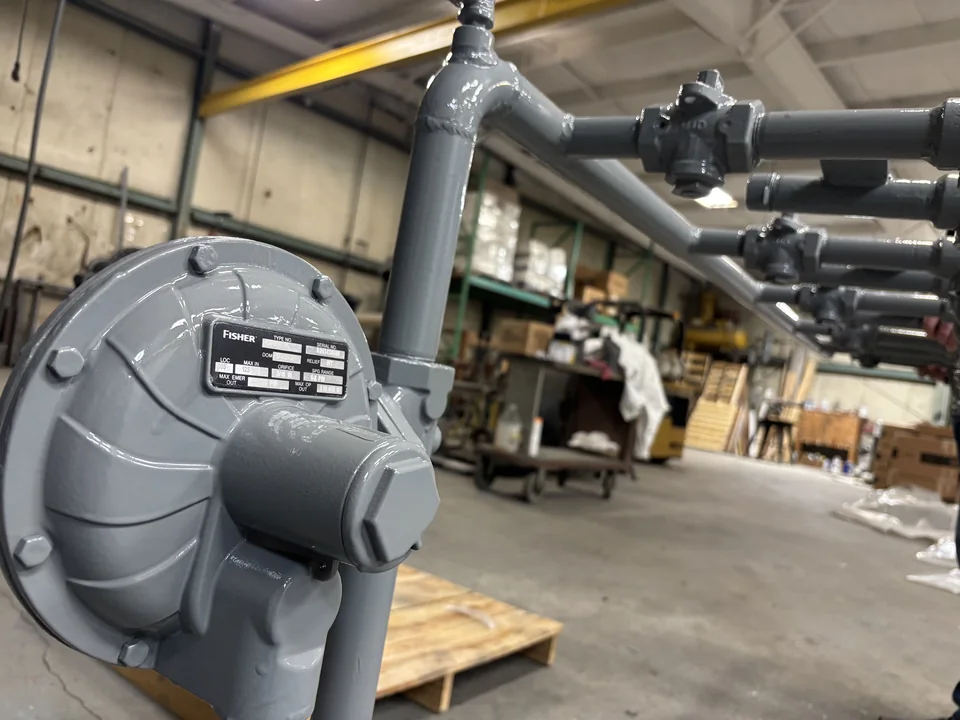

Close-up of a Fisher regulator nameplate, with a multi-meter natural gas manifold in the background.

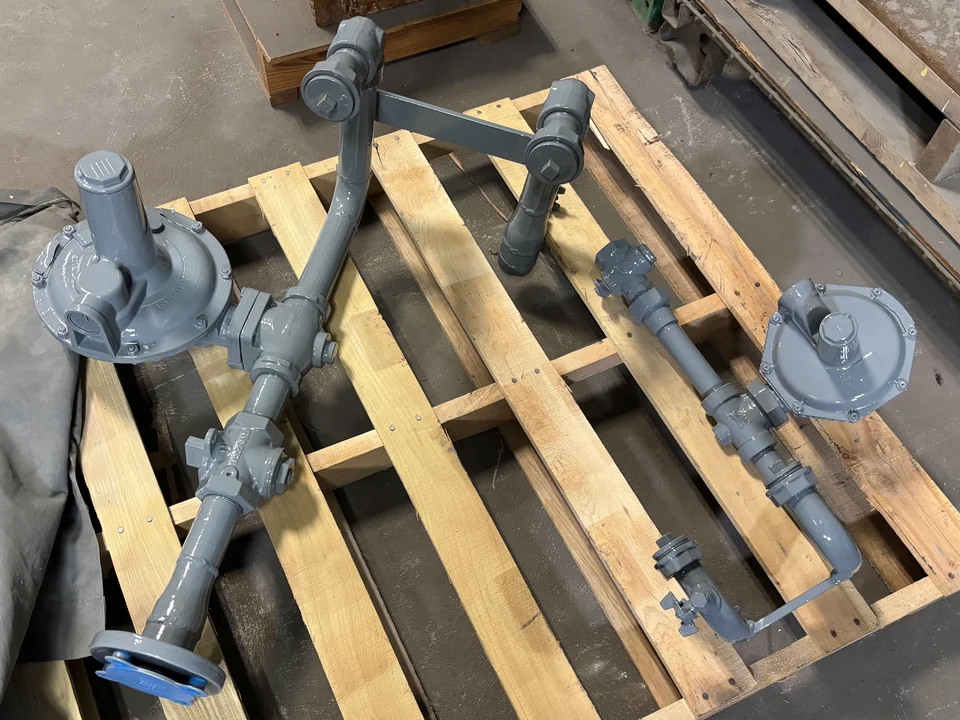

Two residential-style natural gas regulator assemblies with flanged inlets, built for light commercial use.

Grain Dryer

Numerous options to accommodate a wide range of required delivery pressures and loads.
View project

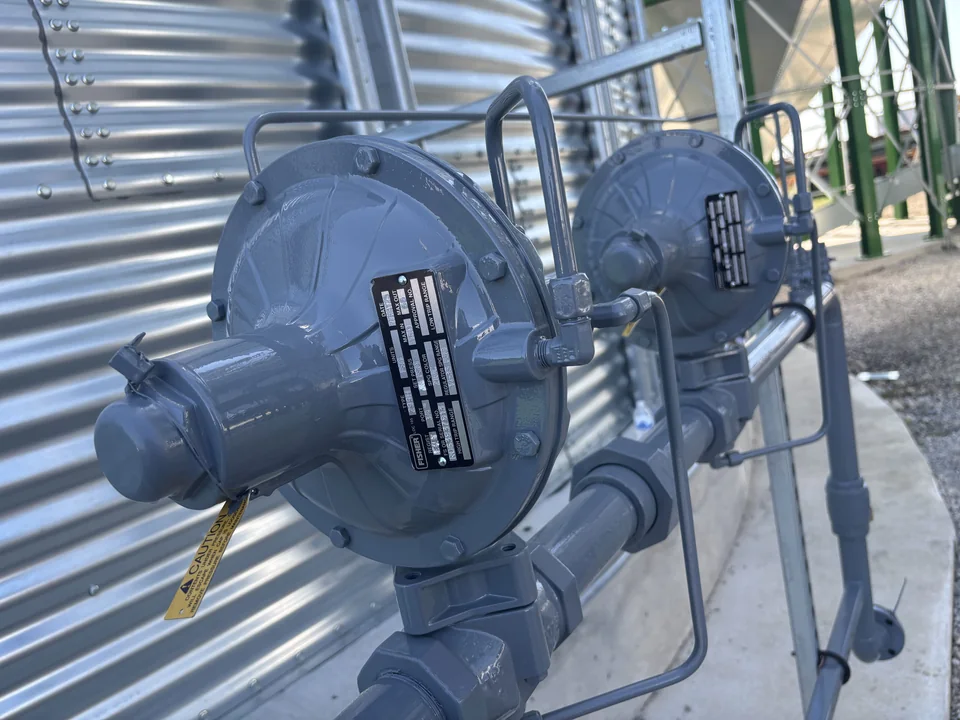

Twin natural gas regulators mounted on piping along the corrugated steel wall of a grain bin.

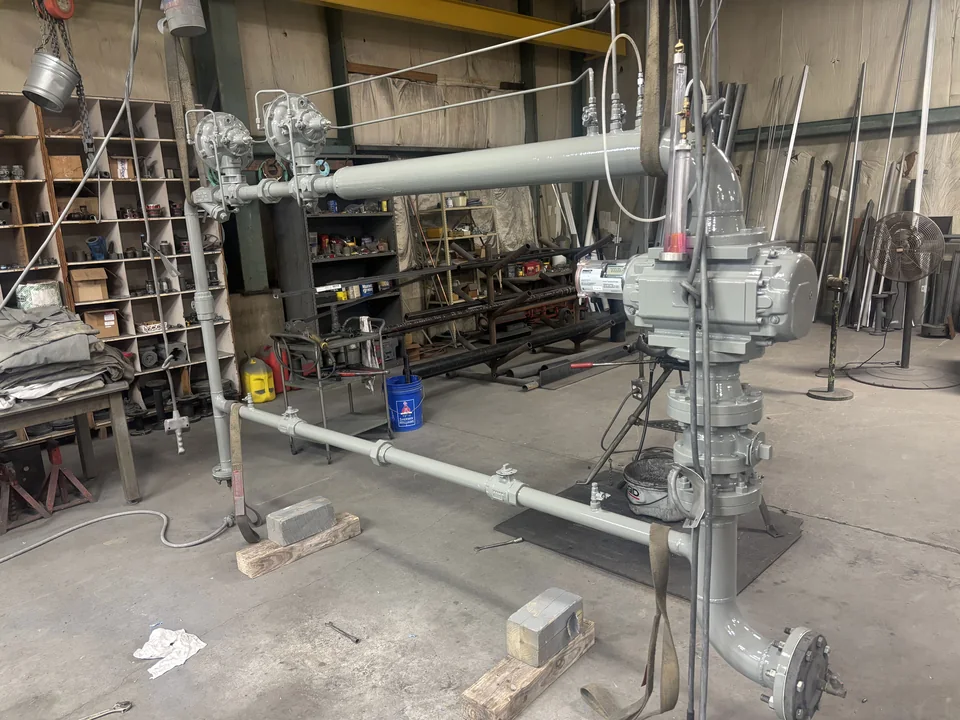

Grain dryer gas train with twin regulators and an actuated control valve, fully assembled in the shop.
